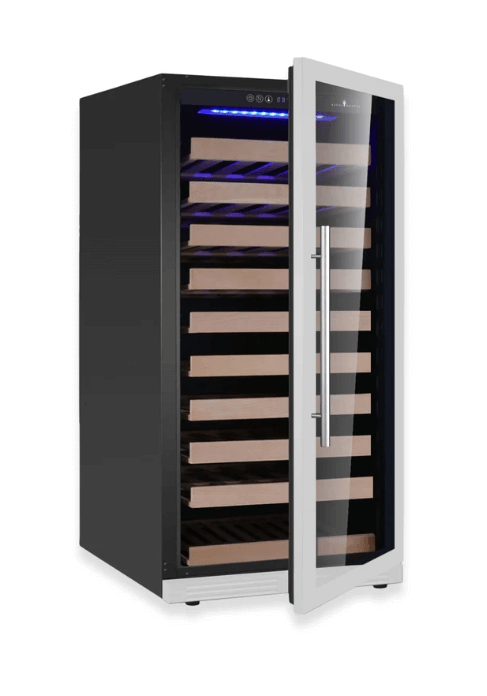

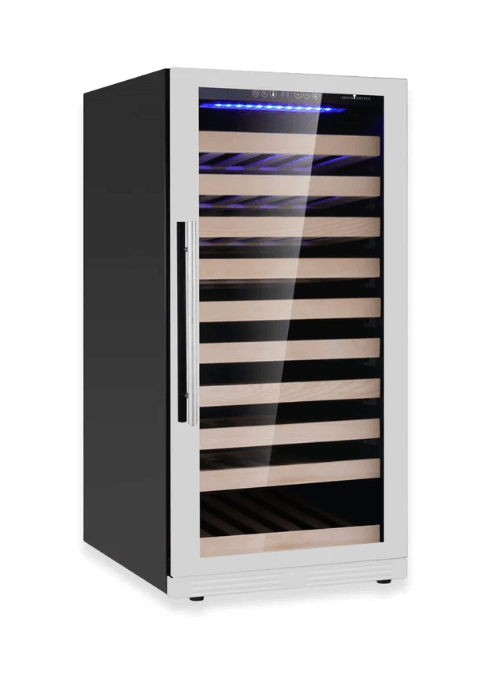

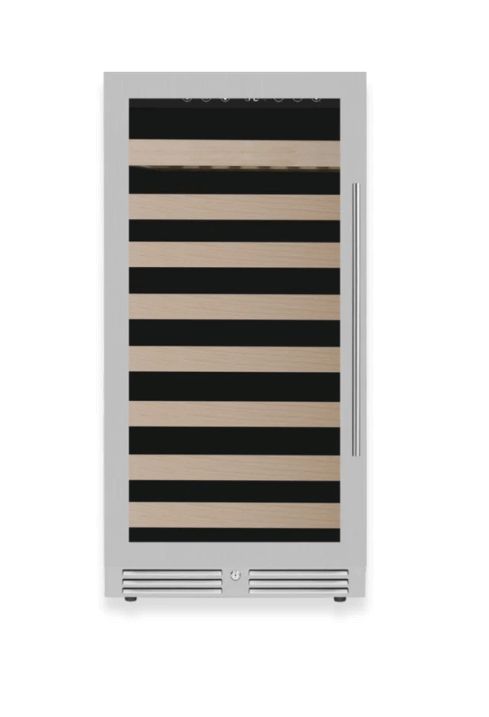

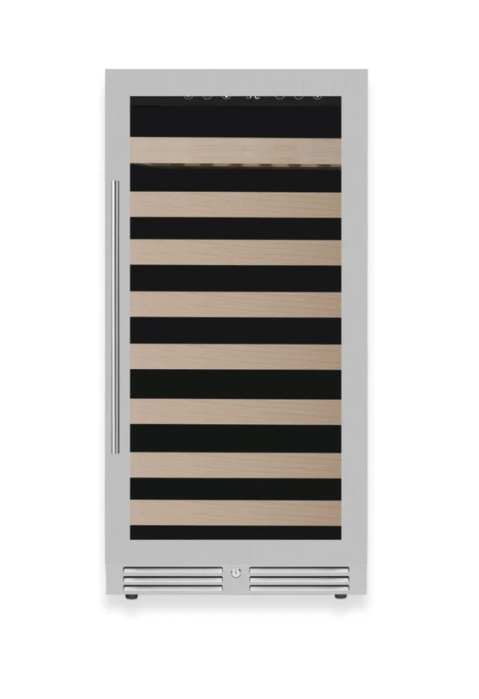

Kings Bottle 47-Inch Height Single Zone Wine Cooler with Low-E Glass Door KBU265WX-FG

Description:

The Kings Bottle KBU265WX-FG wine refrigerator combines efficient design with advanced preservation technology. This 47" single-zone unit maintains precise uniform temperatures ideal for extended cellaring, powered by an energy-efficient Embraco inverter compressor that delivers up to 40% energy savings with ultra-quiet operation.

The sophisticated design features a protective dual-layer Low-E glass door that minimizes condensation while providing UV protection. With capacity for up to 99 bottles and specially designed shelving to accommodate bottles up to 3.39" (86mm) in diameter, this versatile cooler offers flexible storage for various wine formats. The intuitive digital touch controls ensure precise temperature management, while the front-venting system allows for both built-in and freestanding installation. Perfect for under-stairs locations or pantries, this elegant cooler delivers professional-grade preservation for medium collections.

Key Features:

• Volume: 9.36CF (265 Liter)
• Capacity by bottles): Up to 99 bottles. Accommodates large bottles up to 3.39" (86mm) in diameter
• Installation Type: Built in or Freestanding
• Climate Type: N
• Temperature Zones: Single Zone
• Adjustable Temperature Range: 35°F to 68°F (2°C to 20°C)
• Operating Room Temperature: 32-100°F (0-38°C)
• Shelf Configuration: 8 Beech Wooden Shelves
• Dimensions: 23.42”W x 27.55”D x 47.24”H, included stand height 0.59”

Electrical:

• Compressor: Embraco Inverter Compressor
• Defrost Type: Automatic Defrost
• Power Supply: 110-115V/60HZ
• Rated Power Input: 165W
• Rated Current: 1.7A
• Refrigerant: R600A / 45g
• Power Lamp: .07W
• Energy Consumption: 0.63Kw*h/24h

Technical Features:

Inverter Compressor

Top brand Embraco Inverter Compressor;
Super quiet operation and reduces energy consumption by 40%.

---

Patented Sink of Compressor

Increases air circulation space around the compressor;
Provides better cooling performance, less vibration, and reduced noise.

---

Low-E Glass

Reduces energy consumption and condensation on the glass door;
Acts as an invisible insulating barrier.

Note: Low-E Glass features a thin coating that reduces heat transfer and condensation, enhancing energy efficiency and cooling performance.

---

Fan Circulated Air-Cooling System

Ensures temperature uniformity in the cabinet;
Compensates for air humidity to protect contents.

---

Activated Carbon Filter

Effectively filters impurities in the air;
Keeps the air in the cabinet fresh and odor-free.

---

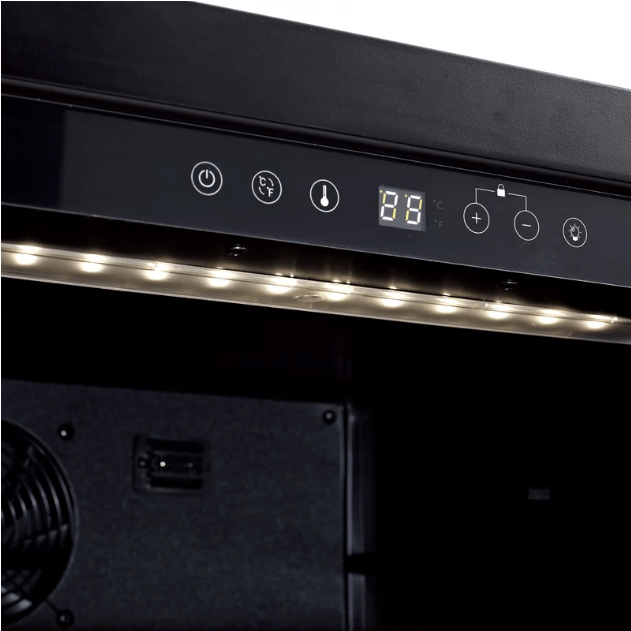

LED Display Digital Touchpad Control

Simple and easy-to-operate controls;
Clear and accurate settings display.

---

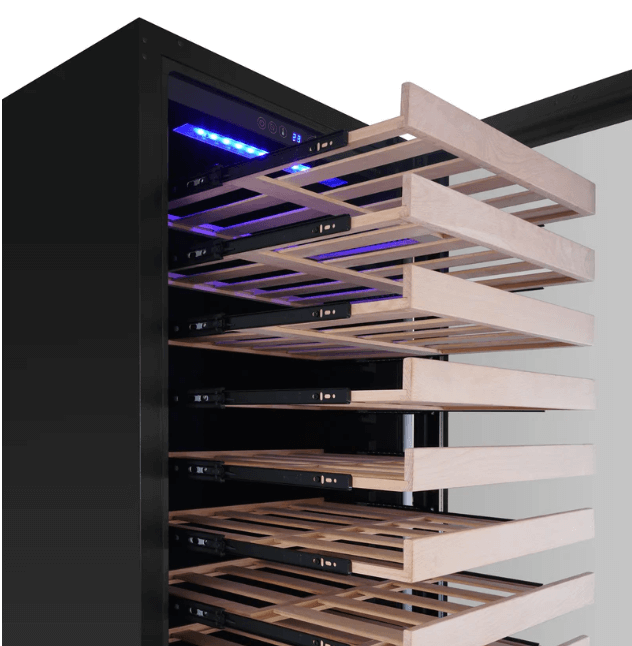

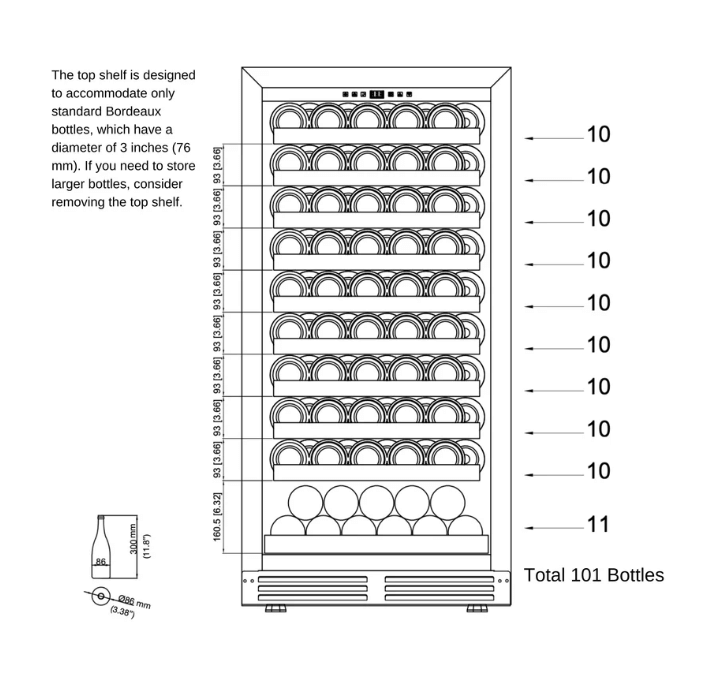

Beech Wooden Shelf

Optimized FULL-EXTENSION pull-out wood shelves with sturdy and wine-friendly beech; Cleverly spaced to fit both regular and larger bottles up to 3.39" (86mm) in diameter.

---

Magnetic Switch

2-minute door-open alarm.

---

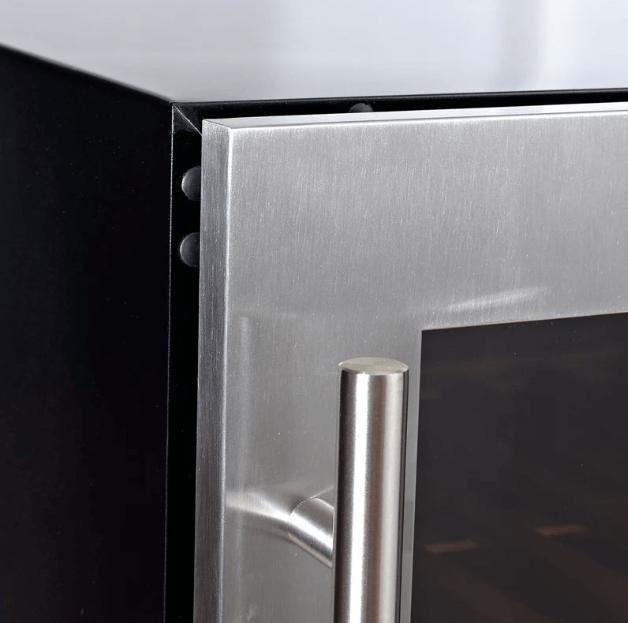

Hidden Door Hinge

Laminated steel plate with integrated molding;
Full built-in design for seamless integration.

---

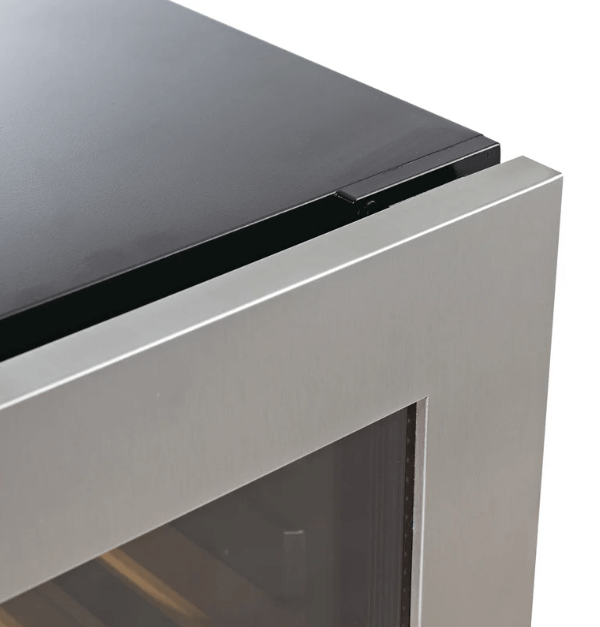

Seamless Stainless Steel Door Frame

Features an artistic appearance with a thin door design.

---

45mm Thickness C-Pantane

Thicker foam optimizes cooling performance and reduces energy consumption.

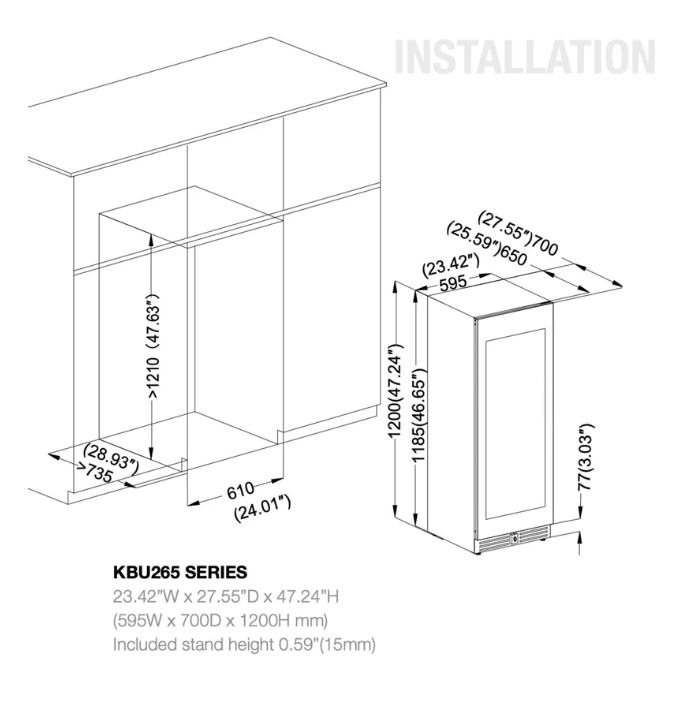

Dimensions & Diagrams

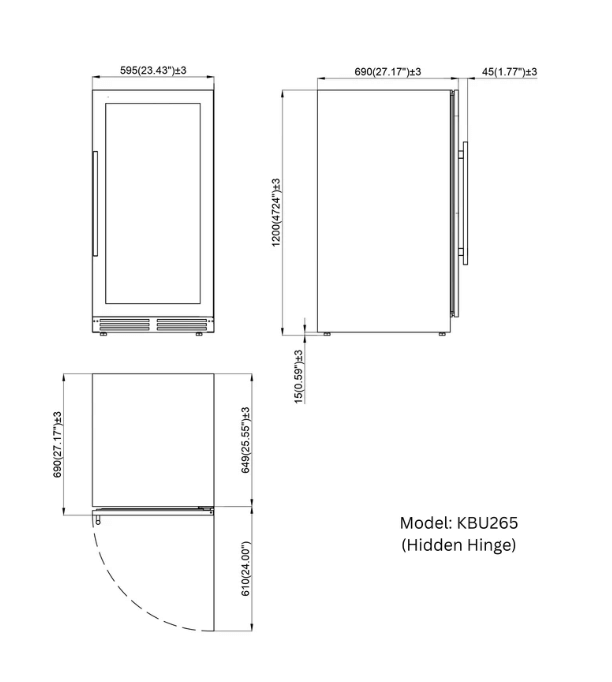

Technical Dimensions

Installation Diagrams

User Instruction

Download the Single Zone Wine Coolers KBU145WX/KBU265WX/KBU425WX User Manual.
