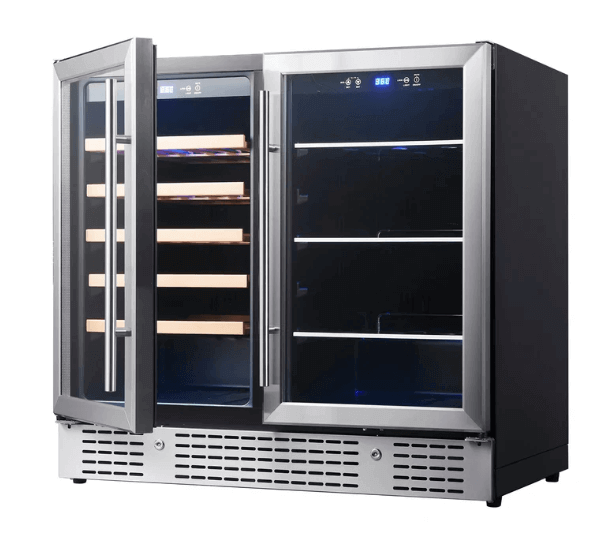

36-inch Beer and Wine Cooler Combination KBU190BW

Description:

The KingsBottle KBU190BW 36-inch beer and wine cooler combination with dual-zone cooling delivers versatile storage with sophisticated cooling in a sleek 36" design. This single unit (35.5"W x 23.4"D x 33.5"H, 6.70 cu.ft) features two independently controlled compartments: wine side accommodating 34 bottles and beer side storing 98 cans, each with adjustable temperatures from 35-68°F (2-20°C).

The Low-E glass door reduces condensation while providing UV protection to preserve wine quality and maintain crystal-clear display. Five removable wooden shelves and three glass shelves offer customizable storage options for various bottle and can sizes, while the reliable Embraco compressor delivers quiet, vibration-free cooling performance ideal for everyday use.

Built for installation flexibility, the front-venting system enables seamless under-counter integration or freestanding placement, perfect for islands, kitchens, or bar areas. The sleek stainless steel finish with practical hardware combines high-end aesthetics with easy maintenance. Operating efficiently in ambient temperatures from 32-100°F with eco-friendly R600a refrigerant, this energy-efficient cooler provides comprehensive beverage storage for wine enthusiasts who also enjoy keeping beer and other drinks perfectly chilled.

Specifications:

• Volume: 6.70 CF (190 Liters)
• Capacity: 98 Cans and 34 Bottles of Wine

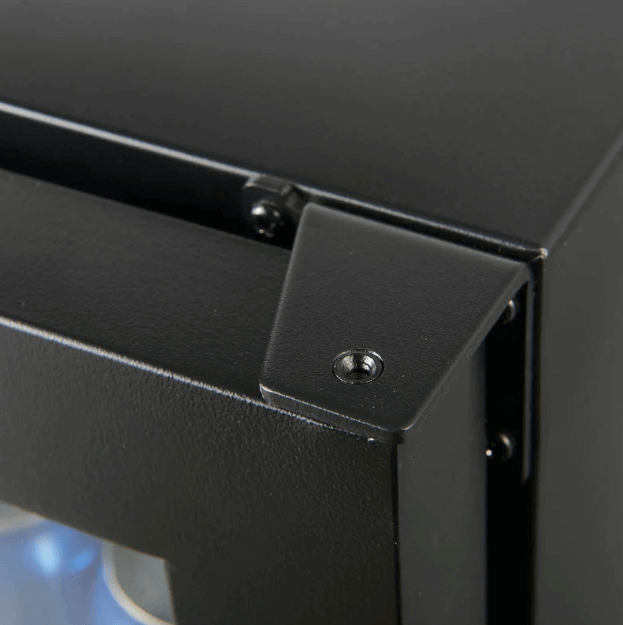

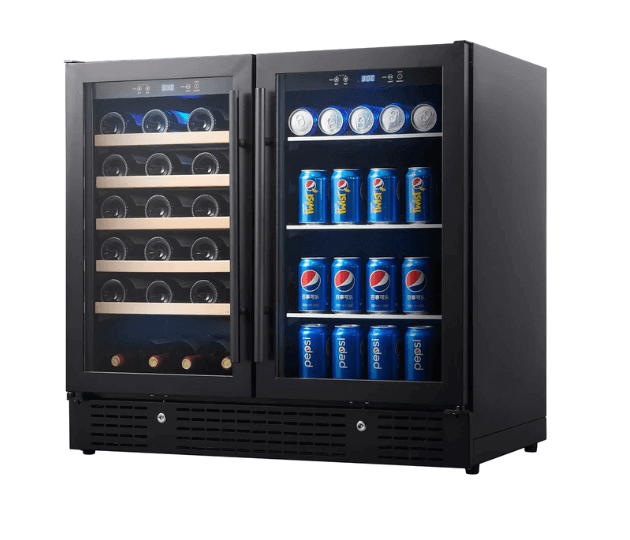

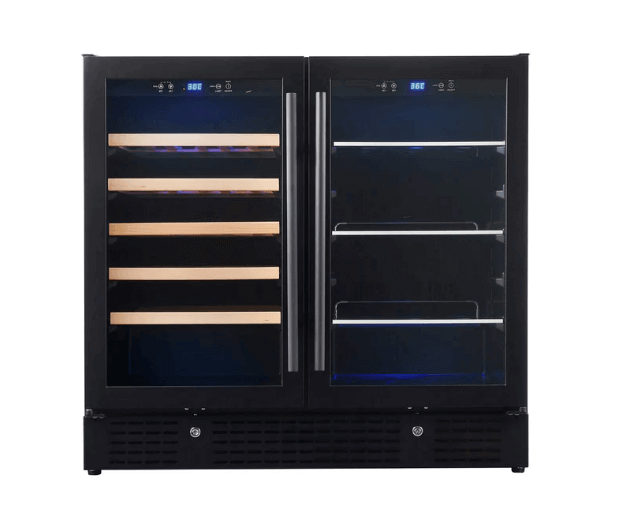

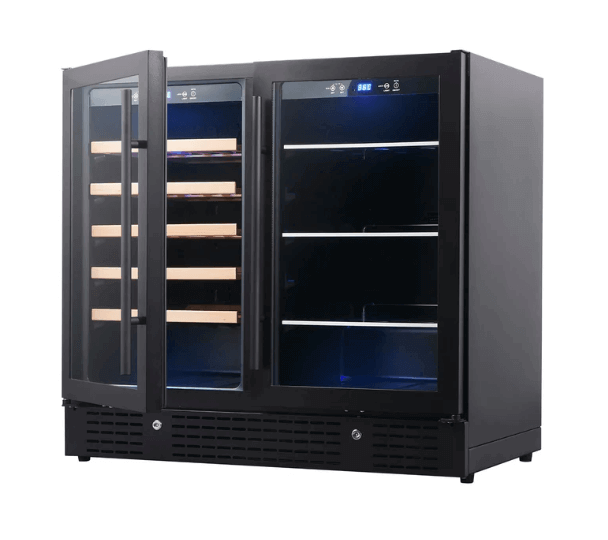

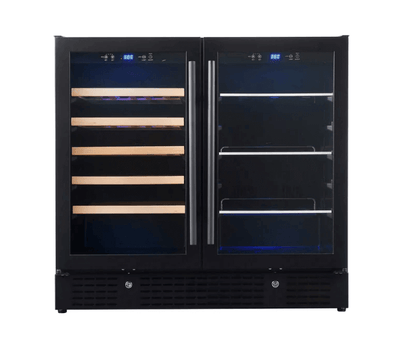

• Door Style:Glass Door with Black Trim

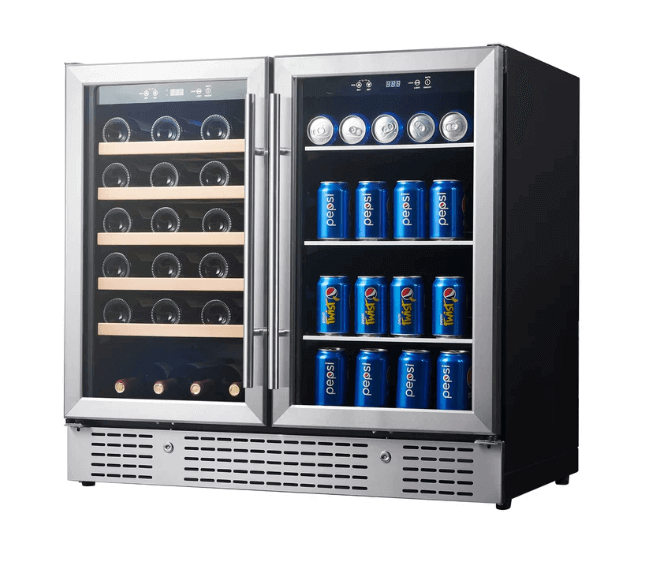

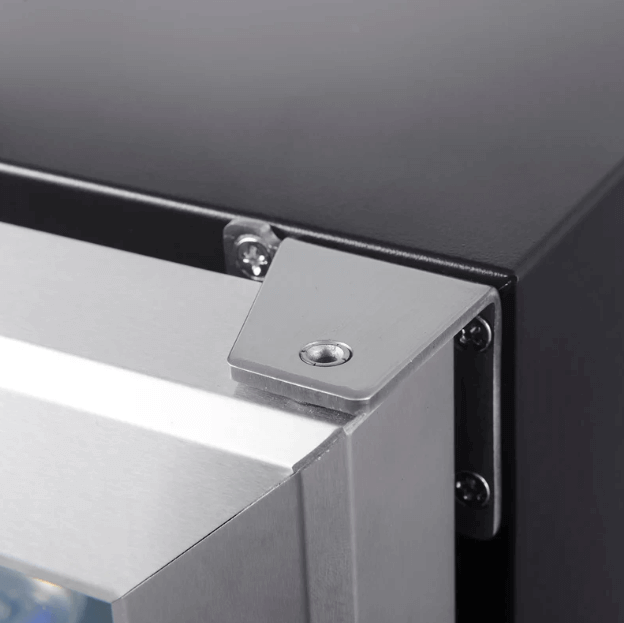

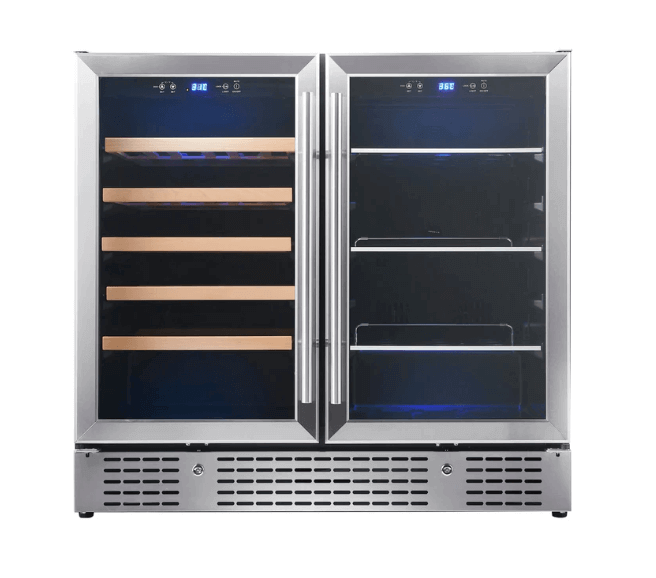

• Glass Door with Stainless Steel trim
• Installation: Built-in or freestanding, Front Venting
• Climate Type: ST;N;SN
• Temperature Zones: Dual ZoneLeft Side Wine Side: 35°F to 68°F (2°C to 20°C)
• Right Side Beer Side:  35°F to 68°F (2°C to 20°C)
• Operating Room Temperature: 32-100°F (0-38°C)
• Shelf Configuration: 3 Glass Shelves and 5 Wood Shelves
• Dimensions: 35.5” W x 23.4” D x 33.5” H

Electrical

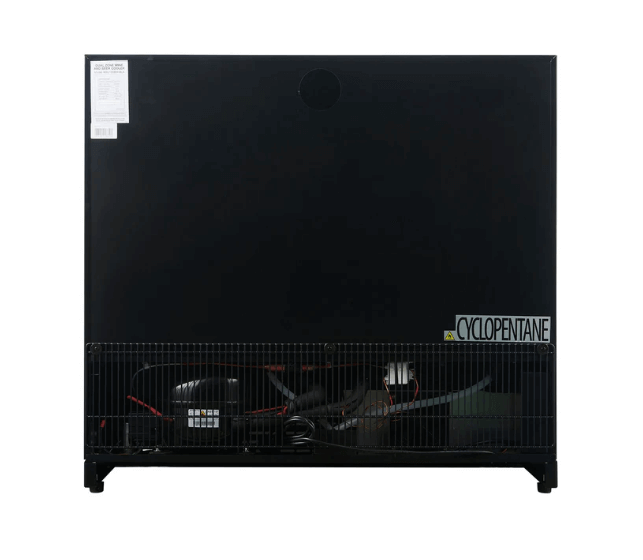

• Compressor: Embraco Compressor
• Power Supply: 120W
• Rated Power Input (W): 110-115V/60HZ
• Rated Current: 1.1A
• Refrigerant: R600a/35g
• Energy Consumption: 595kWh/Year

Technical Features:

Quiet Compressor

Utilizes a high-quality, quiet-running compressor that offers vibration-free cooling, ensuring your beverages are stored without disturbance.

Low-E Glass

Reduces energy consumption and condensation on the glass door;

Acts as an invisible insulating barrier.

Note: Low-E Glass features a thin coating that reduces heat transfer and condensation, enhancing energy efficiency and cooling performance.

Fan Circulated Air-Cooling System

Ensures temperature uniformity in the cabinet;

Compensates for air humidity to protect contents.

Activated Carbon Filter

Effectively filters impurities in the air;

Keeps the air in the cabinet fresh and odor-free.

LED Display Digital Touchpad Control

Simple and easy-to-operate controls;

Clear and accurate settings display.

45mm Thickness C-Pantane

Thicker foam optimizes cooling performance and reduces energy consumption.

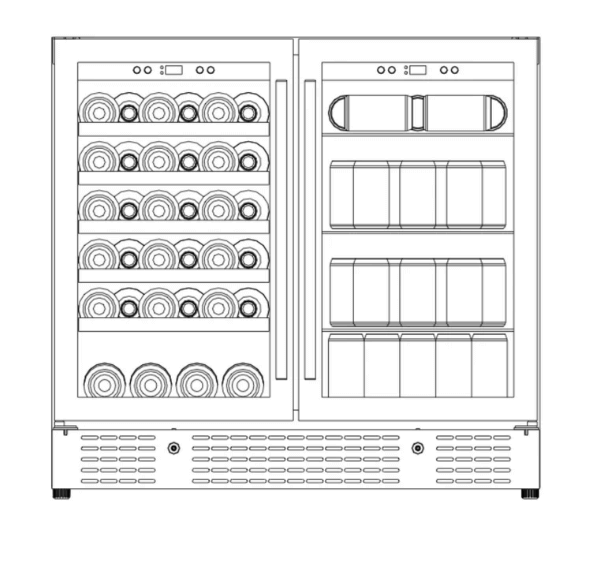

Dimensions & Diagrams:

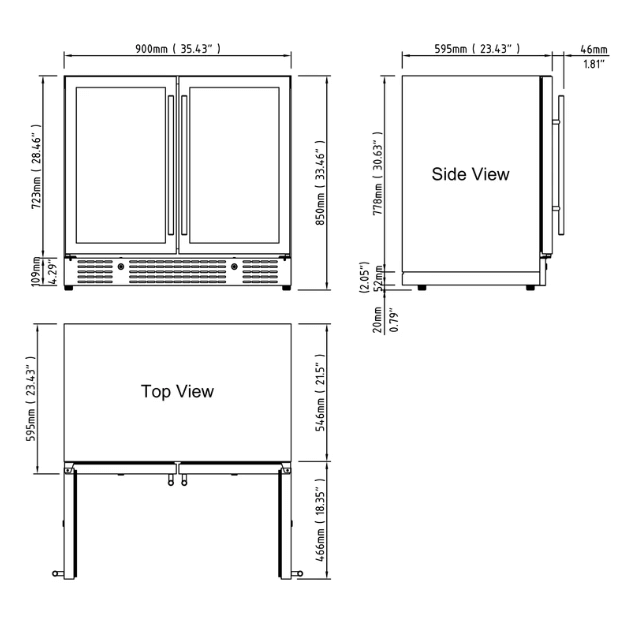

Technical Dimensions

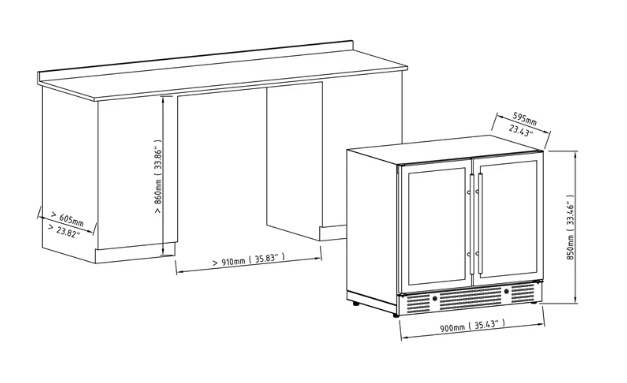

Installation Diagrams

User Manual
