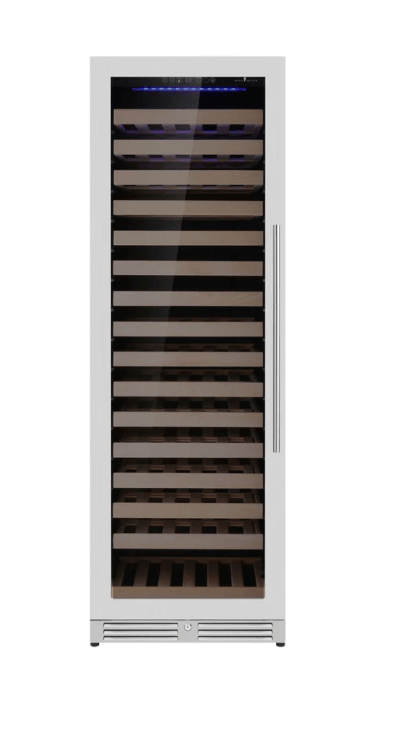

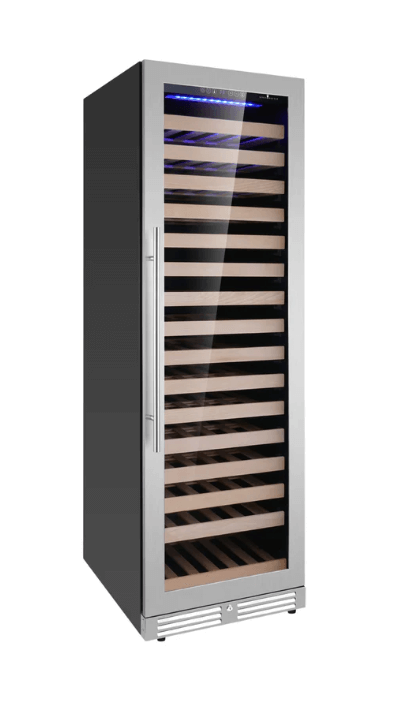

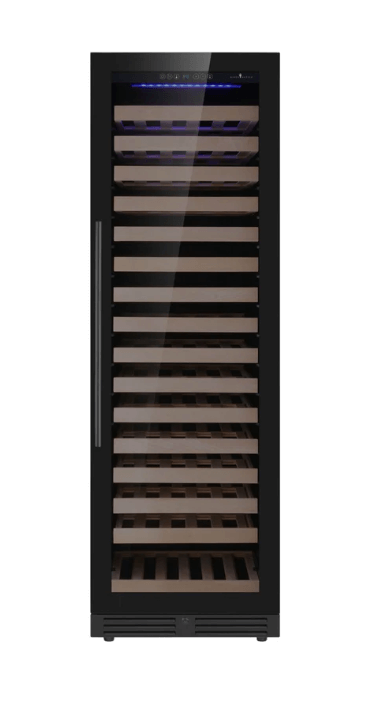

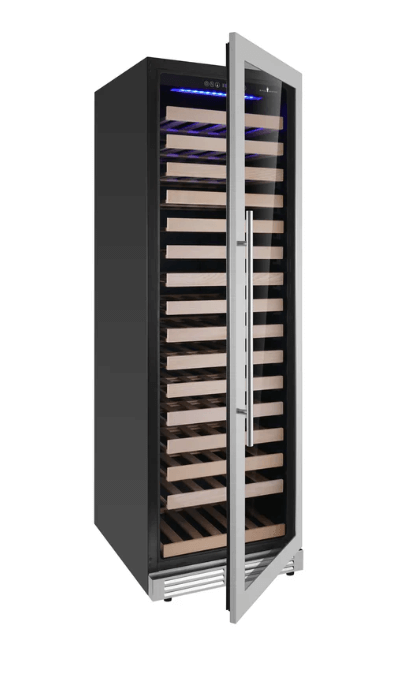

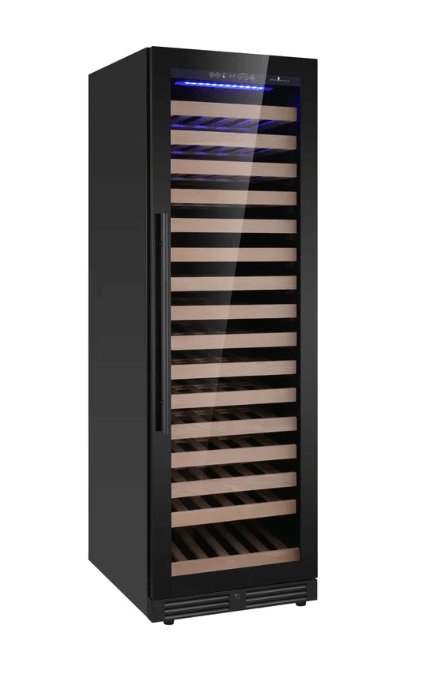

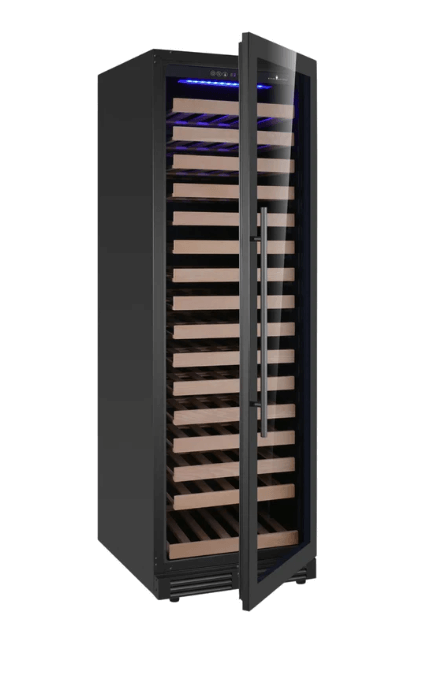

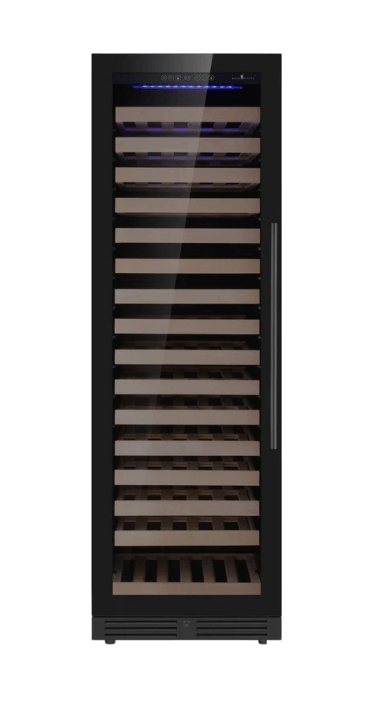

Kings Bottle Upright Single Zone Wine Cooler With Low-E Glass Door KBU425WX-SS

Description:

The Kings Bottle KBU425WX-SS wine refrigerator combines extensive storage with advanced preservation technology. This single-zone upright unit maintains precise uniform temperatures ideal for cellaring homogeneous collections, powered by an energy-efficient Embraco inverter compressor that delivers ultra-quiet operation with reduced energy consumption.

The sophisticated design features a protective Low-E glass door that minimizes condensation while providing UV protection to safeguard your collection. With capacity for up to 150 bottles and adjustable shelving to accommodate various bottle sizes, this elegant cooler maximizes storage space while offering easy access. The intuitive digital touch controls ensure precise temperature management, making this an ideal solution for medium to large collections intended for extended cellaring in both residential and commercial environments.

Key Features:

• Volume: 15CF (425 Liter)
• Capacity by bottles): Up to 161 bottles. Designed to accommodate an extensive array of wine bottles.
• Installation Type: Built in or Freestanding
• Climate Type: N
• Temperature Zones: Single Zone
• Adjustable Temperature Range: 35°F to 68°F (2°C to 20°C)
• Operating Room Temperature: 32-100°F (0-38°C)
• Shelf Configuration: 16 Beech Wooden Shelves
• Dimensions: 23.42”W x 27.36”D x 70.86”H, included stand height 0.59”

Electrical:

• Compressor: Embraco Inverter Compressor
• Defrost Type: Automatic Defrost
• Power Supply: 110-115V/60HZ
• Rated Power Input: 165W
• Rated Current: 1.7A
• Refrigerant: R600A / 52g
• Power Lamp: .07W
• Energy Consumption: 0.63Kw*h/24h

Technical Features:

Inverter Compressor

Top brand Embraco Inverter Compressor;
Super quiet operation and reduces energy consumption by 40%.

---

Patented Sink of Compressor

Increases air circulation space around the compressor;
Provides better cooling performance, less vibration, and reduced noise.

---

Low-E Glass

Reduces energy consumption and condensation on the glass door;
Acts as an invisible insulating barrier.

Note: Low-E Glass features a thin coating that reduces heat transfer and condensation, enhancing energy efficiency and cooling performance.

---

Fan Circulated Air-Cooling System

Ensures temperature uniformity in the cabinet;
Compensates for air humidity to protect contents.

---

Activated Carbon Filter

Effectively filters impurities in the air;
Keeps the air in the cabinet fresh and odor-free.

---

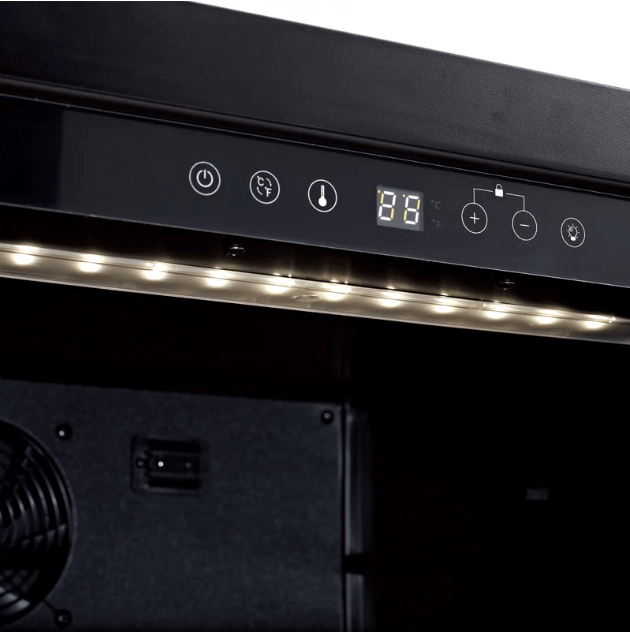

LED Display Digital Touchpad Control

Simple and easy-to-operate controls;
Clear and accurate settings display.

---

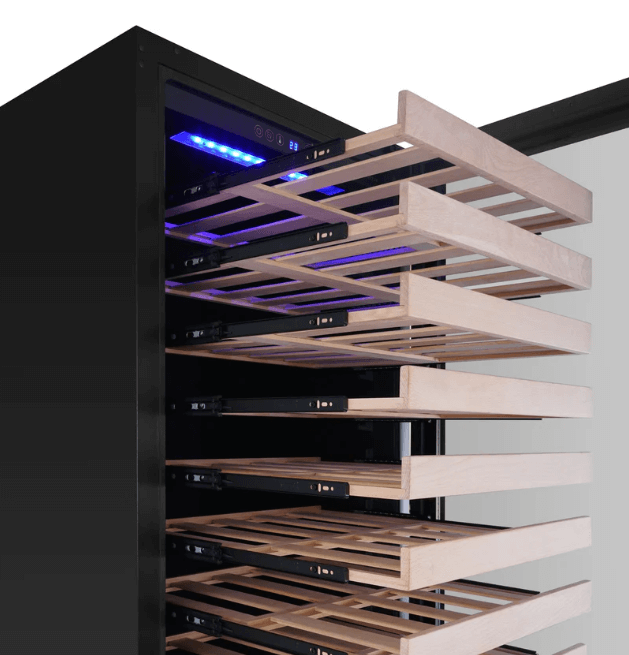

Beech Wooden Shelf

Optimized FULL-EXTENSION pull-out wood shelves with sturdy and wine-friendly beech; Cleverly spaced to fit both regular and larger bottles up to 3.39" (86mm) in diameter.

---

Magnetic Switch

2-minute door-open alarm.

---

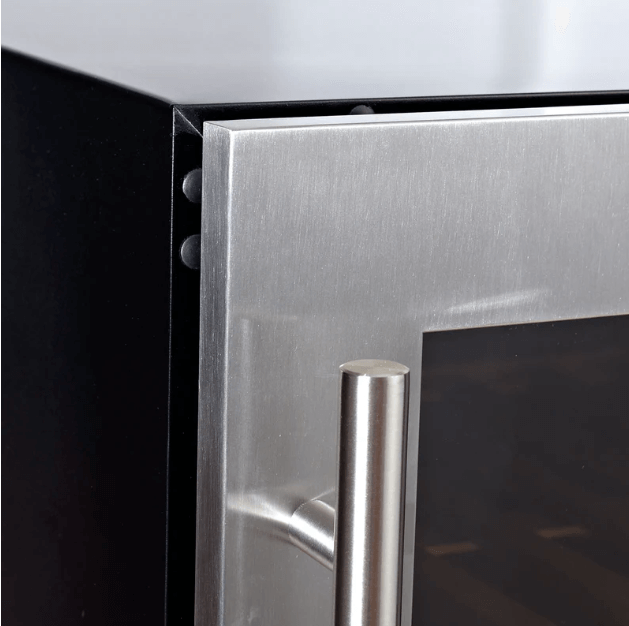

Hidden Door Hinge

Laminated steel plate with integrated molding;
Full built-in design for seamless integration.

---

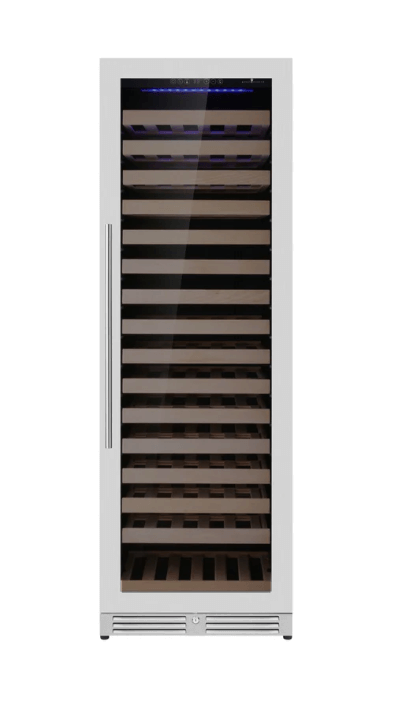

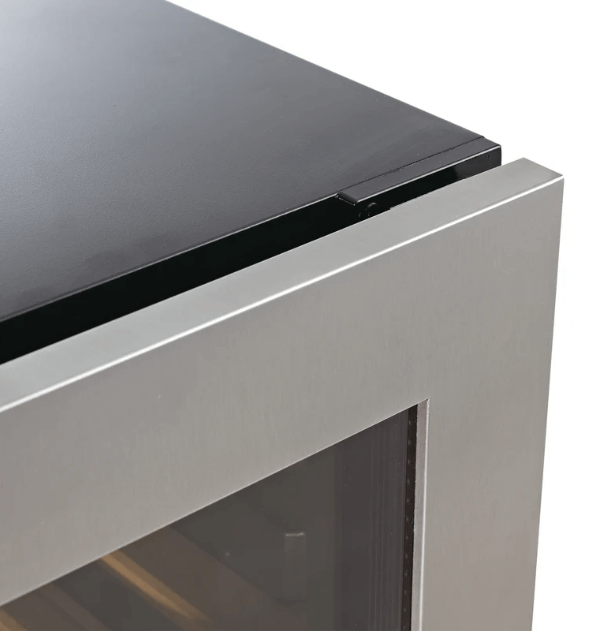

Seamless Stainless Steel Door Frame

Features an artistic appearance with a thin door design.

---

45mm Thickness C-Pantane

Thicker foam optimizes cooling performance and reduces energy consumption.

Dimensions & Diagrams

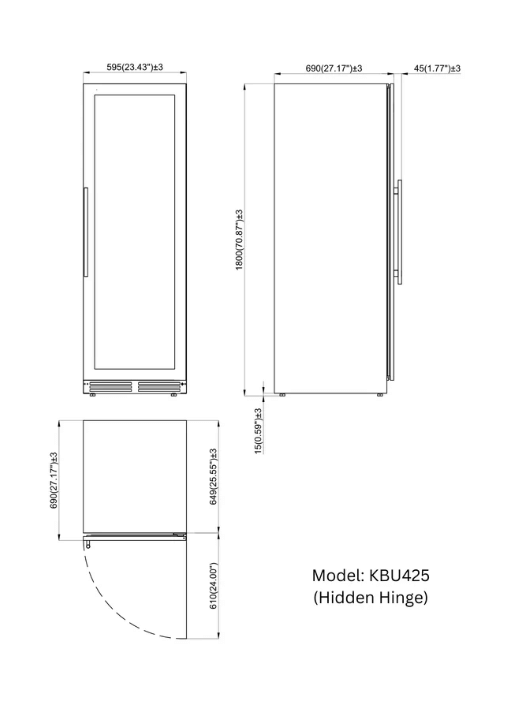

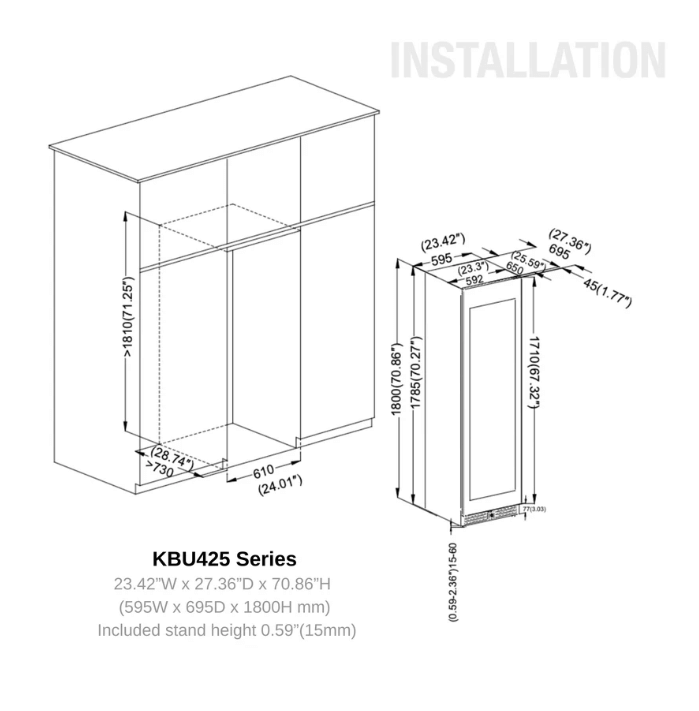

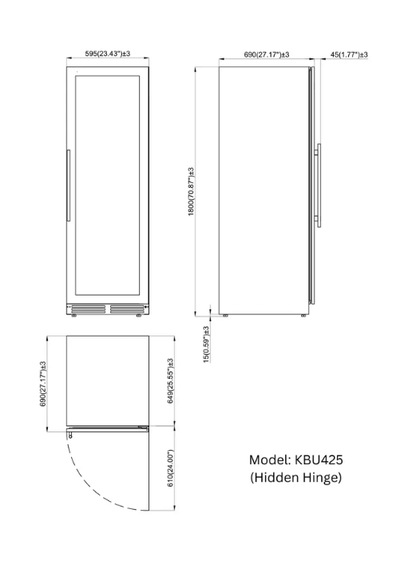

Technical Dimensions

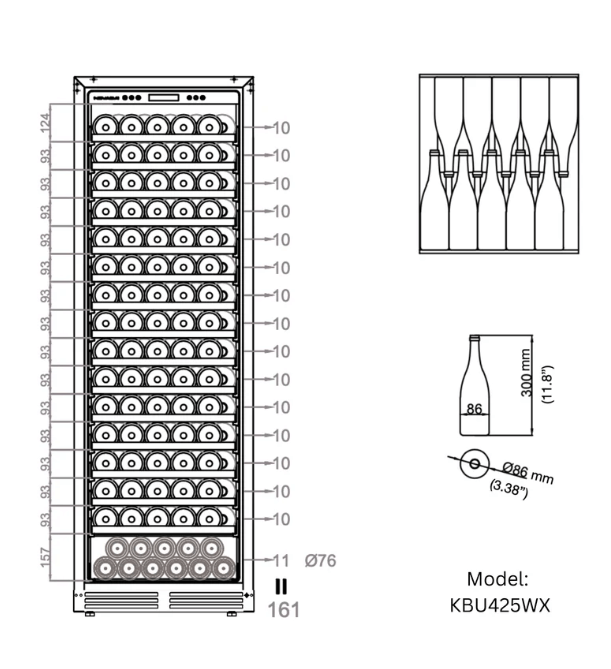

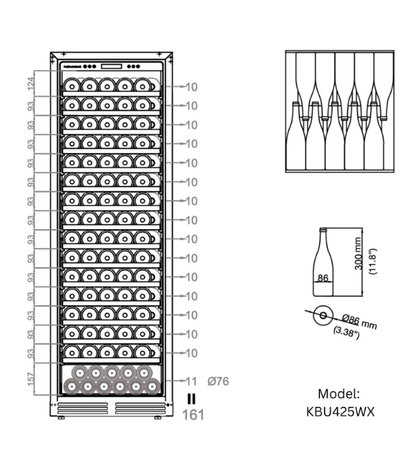

Installation Diagrams

User Instruction

Download the Single Zone Wine Coolers KBU145WX/KBU265WX/KBU425WX User Manual.
