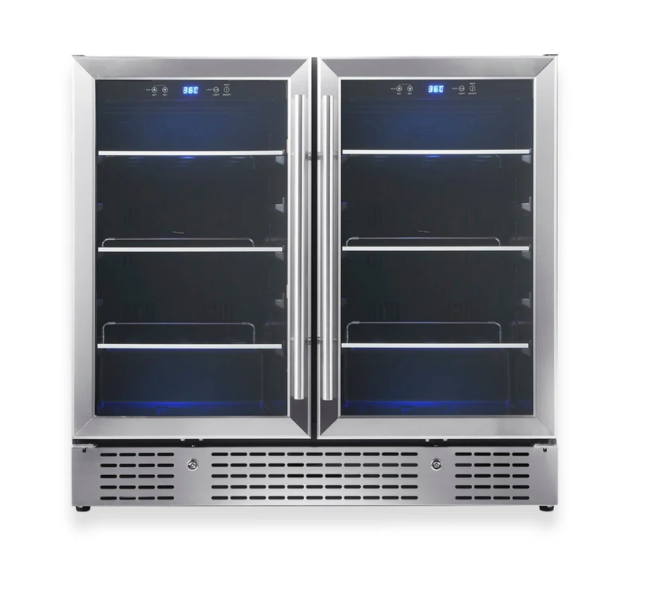

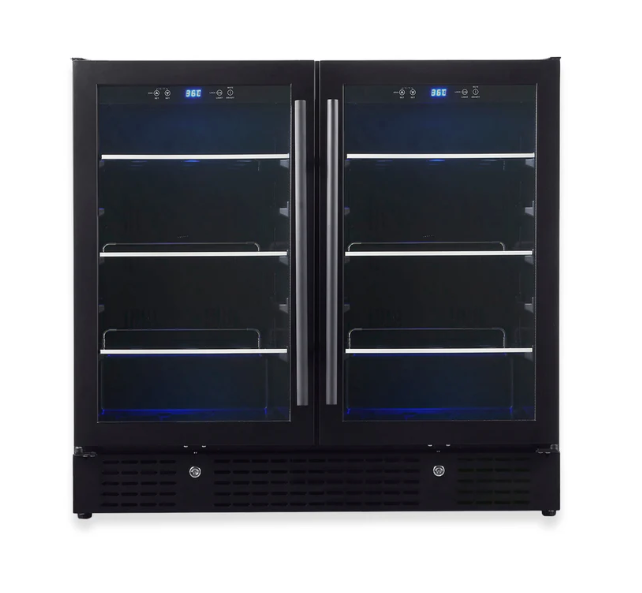

36” Wide Under-Counter Dual Zone Beverage Cooler KBU190B2

Description:

The KingsBottle KBU190B2 dual-zone beverage fridge elevates home entertaining with sophisticated cooling in a sleek 36" design. This versatile unit (35.5"W x 23.4"D x 33.5"H, 6.70 cu.ft) accommodates up to 196 cans across six glass shelves with independently controlled temperature zones, each adjustable from 35-68°F (2-20°C), allowing perfect storage for soft drinks, beers, and sparkling water simultaneously.

The quiet Embraco compressor delivers consistent cooling performance with minimal noise while the energy-efficient design uses eco-friendly R600a refrigerant. The clean stainless steel finish with double-pane LOW-E glass doors and soft blue LED interior lighting creates a modern aesthetic perfect for kitchens, bars, or entertainment areas.

Engineered for flexible installation, the front-vented cooling system enables seamless under-counter integration or freestanding placement. Three glass shelves per zone provide organized storage with easy access to your beverage collection. Ideal for indoor use and suitable for covered outdoor kitchens when protected from direct sunlight and water exposure. Operating efficiently in ambient temperatures from 32-100°F, this dual-zone refrigerator combines style, functionality, and versatile cooling for comprehensive beverage storage needs.

Specifications:

• Volume: 6.70 CF (190 Liters)

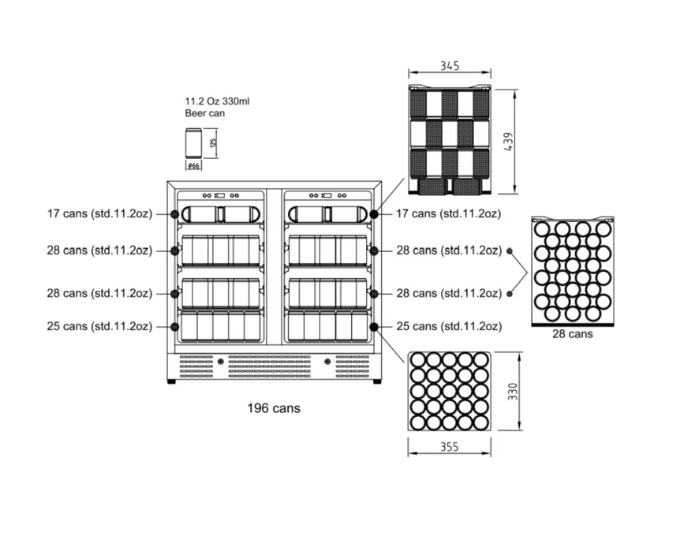

• Capacity: 196 cans
• Door Style:

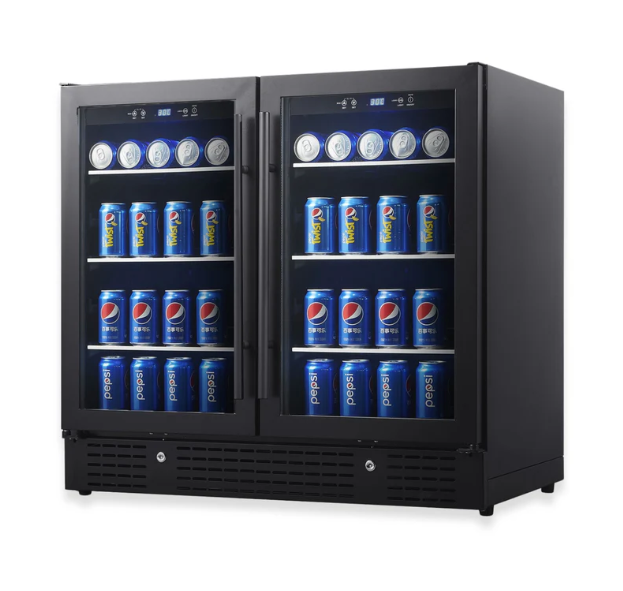

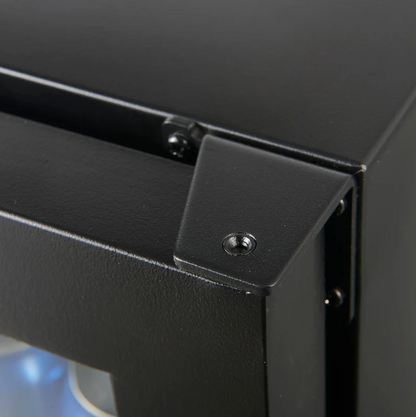

  • Glass Door with Black Trim

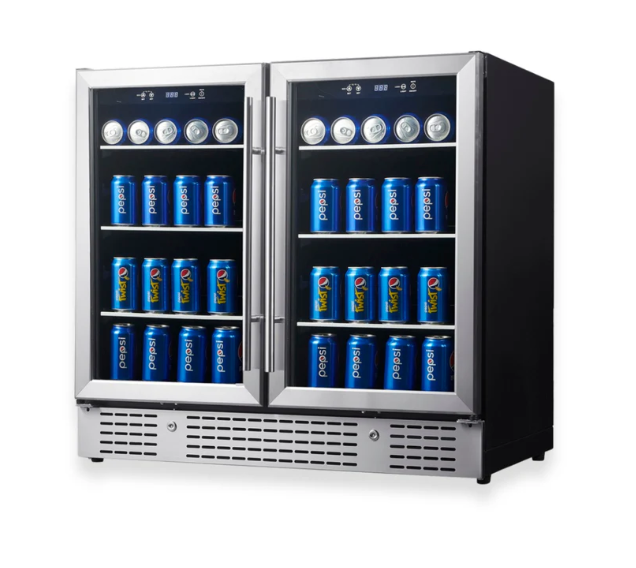

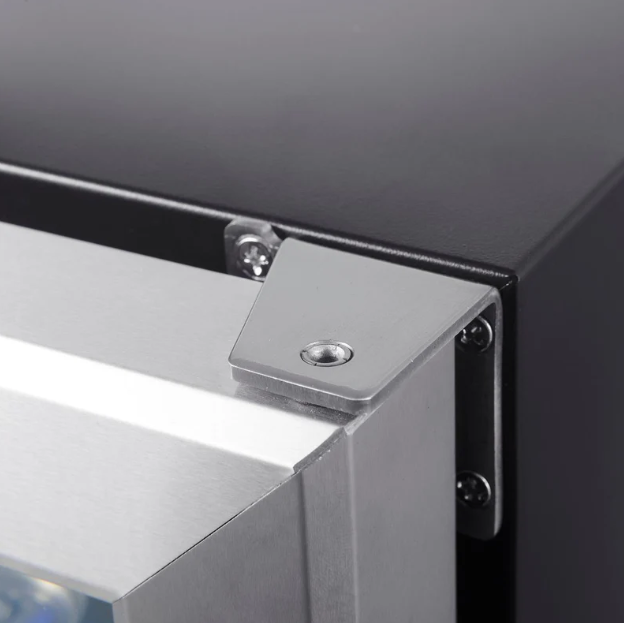

  • Glass Door with Stainless Steel trim
• Installation: Built-in or freestanding, Front Venting
• Climate Type: ST;N;SN
• Temperature Zones: Dual Zone
  • Left Side: 35°F to 68°F (2°C to 20°C)
  • Right Side: 35°F to 68°F (2°C to 20°C)
• Operating Room Temperature: 32-100°F (0-38°C)

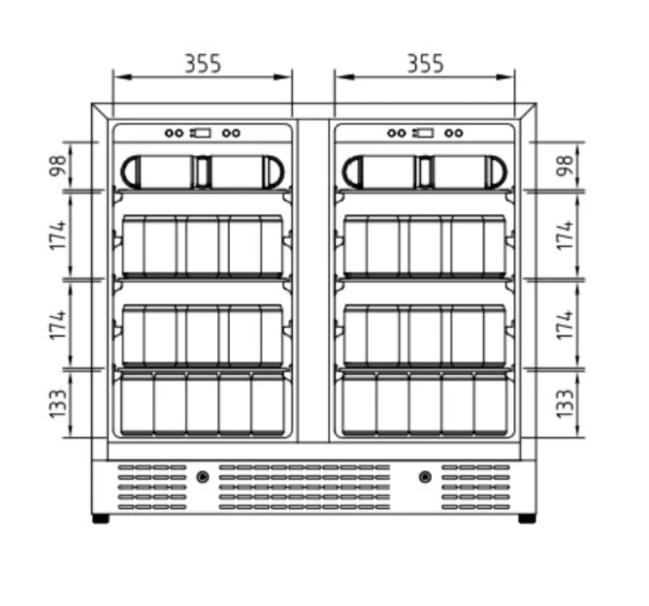

• Shelf Configuration: 3 Glass Shelves in Each Side
• Dimensions: 35.5” W x 23.4” D x 33.5” H

Electrical

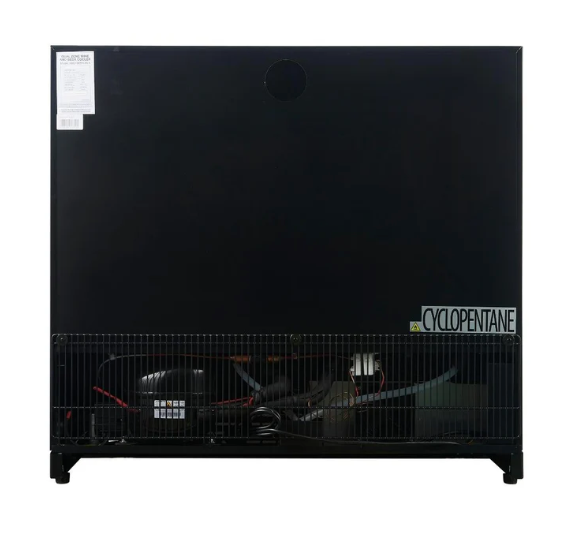

• Compressor: Embraco Compressor
• Power Supply: 120W
• Rated Power Input (W): 110-115V/60HZ
• Rated Current: 1.1A
• Refrigerant: R600a/35g
• Energy Consumption: 595kWh/Year

Technical Features:

Quiet Compressor

Utilizes a high-quality, quiet-running compressor that offers vibration-free cooling, ensuring your beverages are stored without disturbance.

Low-E Glass

Reduces energy consumption and condensation on the glass door;
Acts as an invisible insulating barrier.

Note: Low-E Glass features a thin coating that reduces heat transfer and condensation, enhancing energy efficiency and cooling performance.

Fan Circulated Air-Cooling System

Ensures temperature uniformity in the cabinet;
Compensates for air humidity to protect contents.

Activated Carbon Filter

Effectively filters impurities in the air;
Keeps the air in the cabinet fresh and odor-free.

LED Display Digital Touchpad Control

Simple and easy-to-operate controls;
Clear and accurate settings display.

45mm Thickness C-Pantane

Thicker foam optimizes cooling performance and reduces energy consumption.

Dimensions & Diagrams:

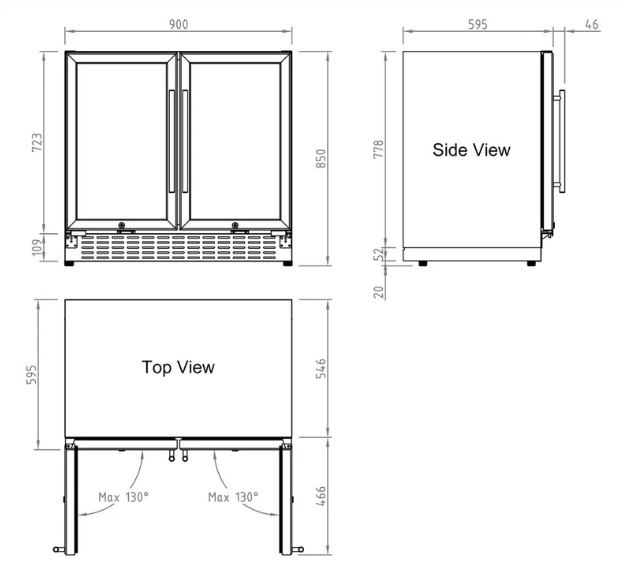

Technical Dimensions

Installation Diagrams

User Manual
