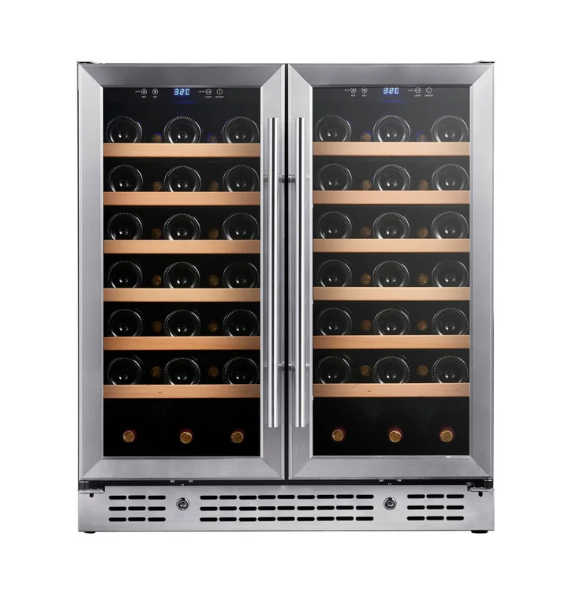

30-inch Dual Zone Wine Cooler with Low-E Glass Door KBU165W2

Description:

The KingsBottle KBU165W2-BLK dual-zone wine cooler combines precision storage with elegant design for wine enthusiasts who value quality preservation. This sophisticated 30" unit (29.6"W x 22.4"D x 33.9"H, 5.83 cu.ft) accommodates up to 66 bottles across two independently controlled compartments—33 bottles per zone—each with six wooden shelves and adjustable temperatures from 35-68°F (2-20°C), perfect for storing reds and whites at their ideal serving or aging temperatures.

The sleek Low-E tempered glass door minimizes condensation while providing superior insulation and UV protection to preserve wine quality. The advanced Embraco compressor cooling system delivers consistent, stable temperatures with minimal noise and vibration, while even air circulation throughout both zones maintains uniform storage conditions from top to bottom.

Built for versatile installation, this cooler offers both freestanding and built-in placement options with contemporary glass door available in black trim. The wooden shelf configuration securely positions bottles while creating beautiful display presentation. Operating efficiently in ambient temperatures from 32-100°F with eco-friendly refrigerant, this dual-zone wine cooler delivers reliable capacity and energy-efficient performance, making it an ideal addition to kitchens, dining rooms, or entertainment spaces for hosting elegant dinner parties or quiet evenings at home.

Specifications:

• Volume: 5.83 CF (165 Liters)
• Capacity: 66 Wine Bottles
• Door Style:

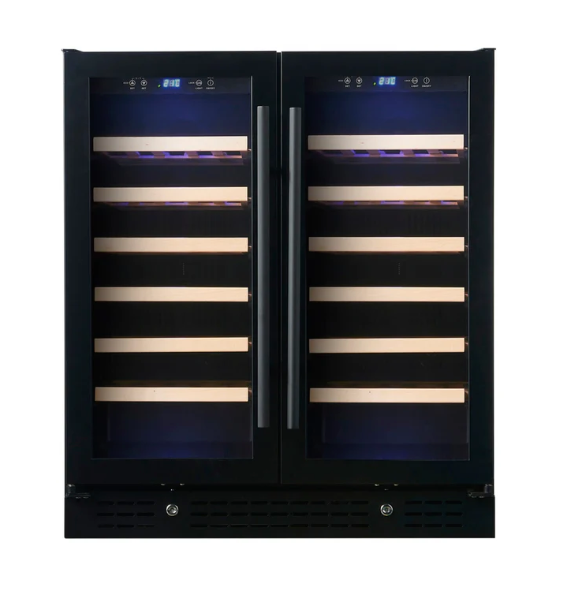

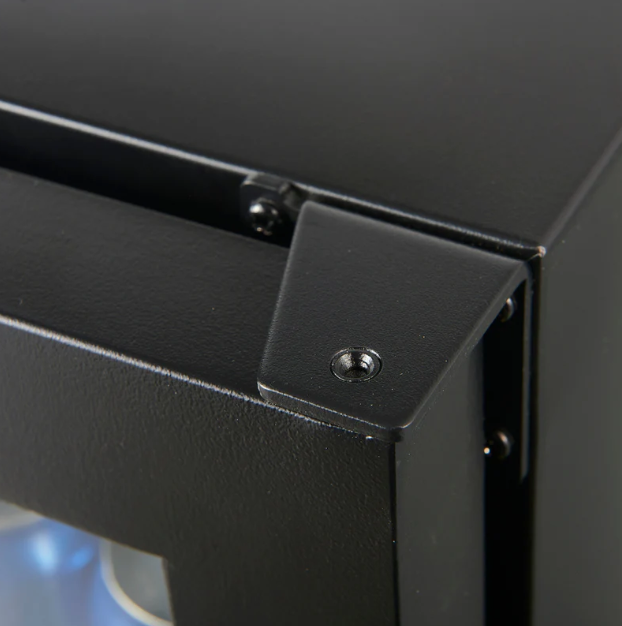

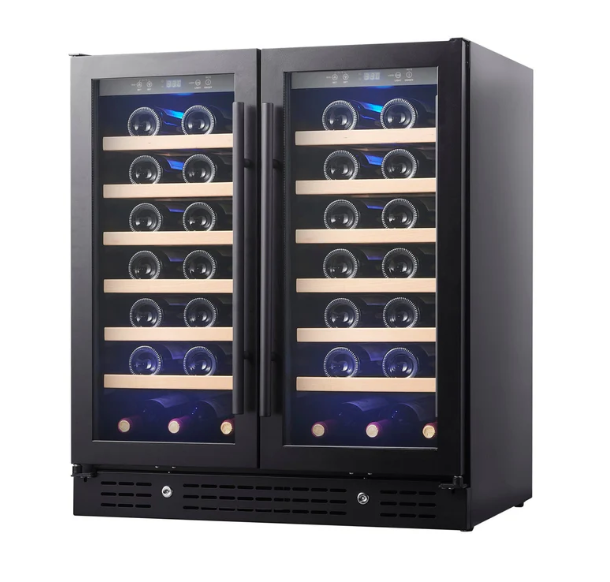

  • Glass Door with Black Trim

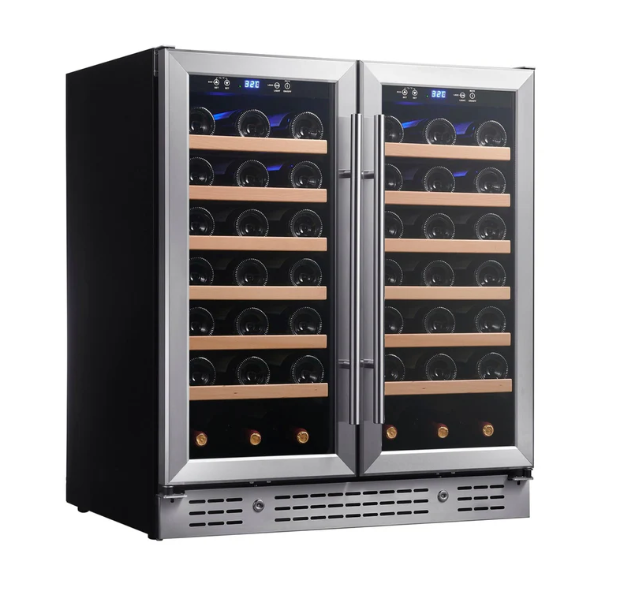

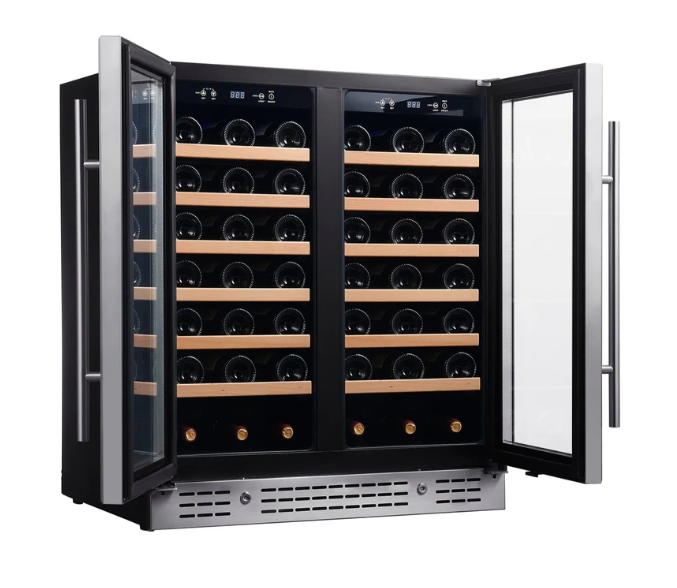

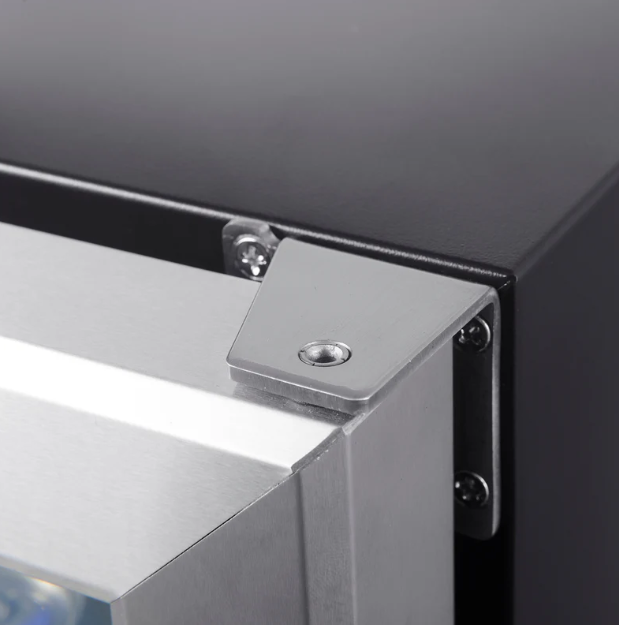

  • Glass Door with Stainless Steel trim
• Installation: Built-in or freestanding, Front Venting
• Climate Type: ST;N;SN
• Temperature Zones: Dual Zone
  • Left Side: 35°F to 68°F (2°C to 20°C)
  • Right Side: 35°F to 68°F (2°C to 20°C)
• Operating Room Temperature: 32-100°F (0-38°C)
• Shelf Configuration: 6 Wooden Shelves Each Compartment
• Dimensions: 29.6” W x 22.4” D x 33.9” H

Electrical

• Compressor: Embraco Compressor
• Power Supply: 120W
• Rated Power Input (W): 110-115V/60HZ
• Rated Current: 1.1A
• Refrigerant: R600a/35g
• Energy Consumption: 570kWh/Year

Technical Features:

Quiet Compressor

Utilizes a high-quality, quiet-running compressor that offers vibration-free cooling, ensuring your beverages are stored without disturbance.

Low-E Glass

Reduces energy consumption and condensation on the glass door;
Acts as an invisible insulating barrier.

Note: Low-E Glass features a thin coating that reduces heat transfer and condensation, enhancing energy efficiency and cooling performance.

Fan Circulated Air-Cooling System

Ensures temperature uniformity in the cabinet;
Compensates for air humidity to protect contents.

Activated Carbon Filter

Effectively filters impurities in the air;
Keeps the air in the cabinet fresh and odor-free.

LED Display Digital Touchpad Control

Simple and easy-to-operate controls;
Clear and accurate settings display.

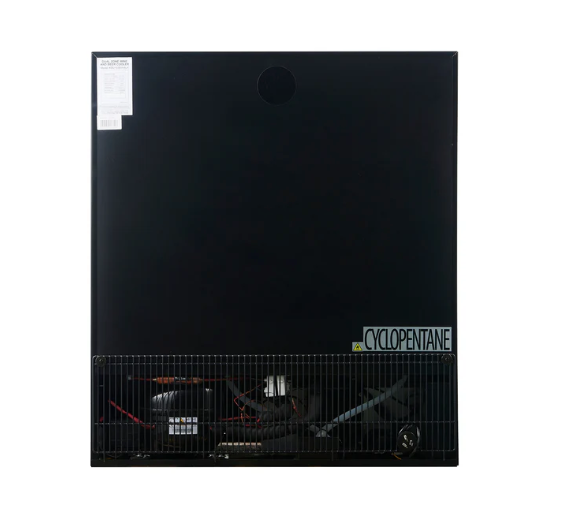

45mm Thickness C-Pantane

Thicker foam optimizes cooling performance and reduces energy consumption.

Dimensions & Diagrams:

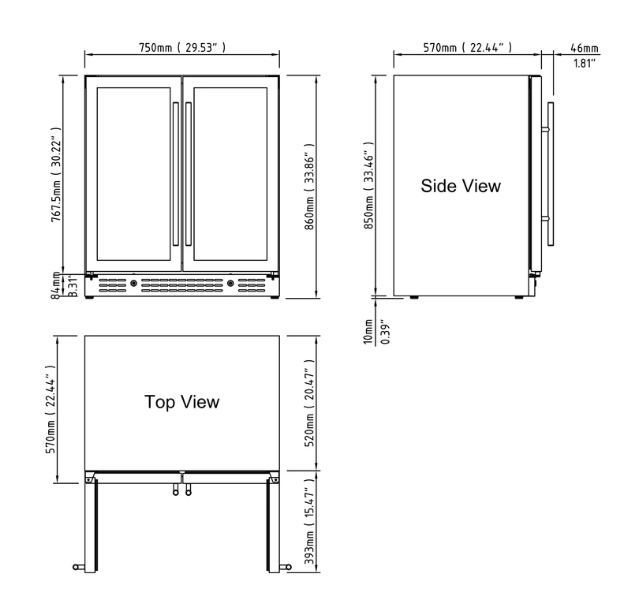

Technical Dimensions

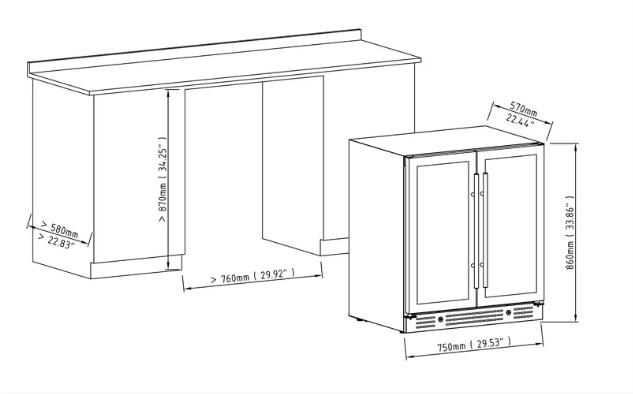

Installation Diagrams

User Manual
