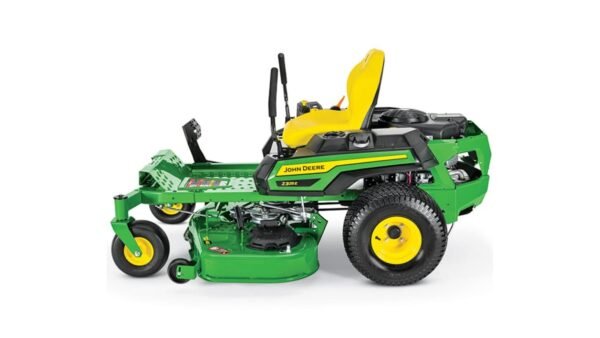

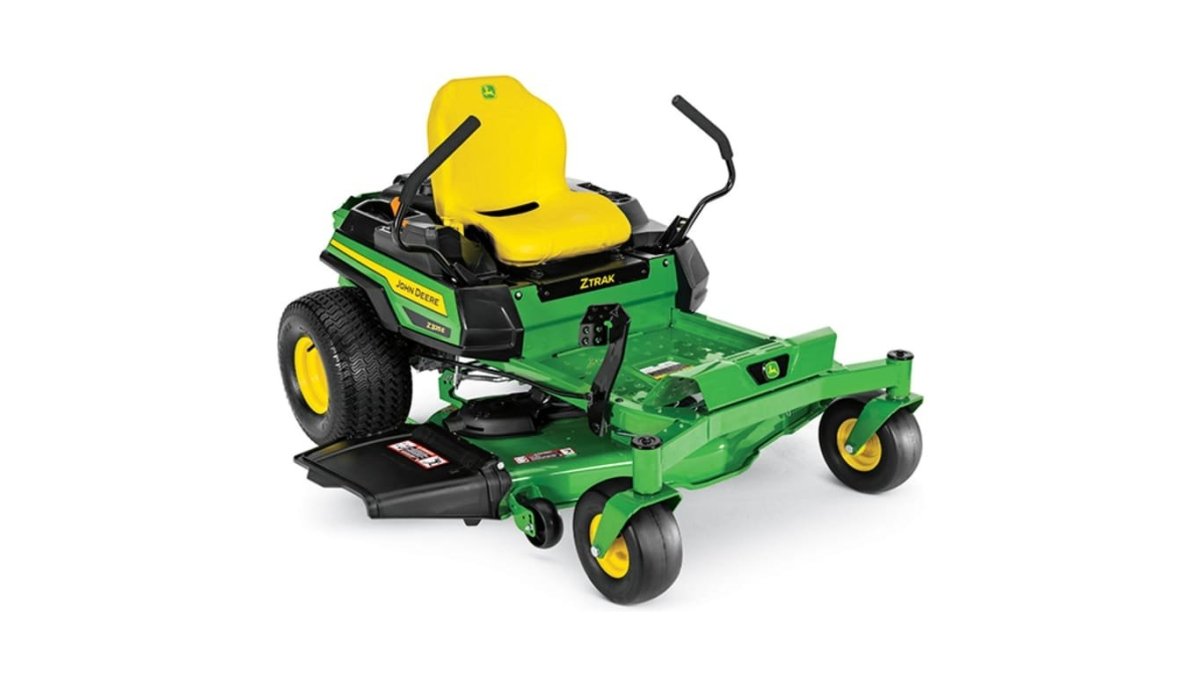

Z325E ZTrak™ Mower with 48-in. Deck

$2,250.00 $3,699.00
Shipping calculated at checkout.

FREE Shipping in the Continental US

In Stock & Ready to Ship

Estimated Delivery 7-12 Days

Description
Engine power 24 hp

17.9 kW
Engine model number 44 EXi
Forward speed 0-7 mph
0-11.3 km/h
Front caster tires 11×6-5
Drive tires 20×10-8
Seat back height High back with optional armrests, 18 in.
46 cm
Width of cut Accel Deep™ mower deck, 48 in.
122 cm
Accel Deep™ mower deck, 54 in.
137 cm
Mulching system Optional MulchControl™ attachment
Warranty 3 year or 200 hour bumper-to bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Key Specs
Power 24 hp
17.9 kW
Model number 44 EXi
Displacement 44.2 cu in.
724 cc
Cylinders V-twin
Lubrication Full pressure with replaceable filter, capacity, 2 U.S. qt
1.9 L
Type Overhead valve
Battery 12 V
300 CCA
Choke/speed control Single lever
Cooling method Air
Fuel tank capacity 3.0 U.S. gal.
11.4 L
Fuel gauge Translucent tank
Engine
Dual hydros Hydro-Gear EZT-D with 1-in. (2.5-cm) axles
Drive train
Forward speed 0-7 mph
0-11.3 km/h
Reverse speed 0-3.5 mph
0-5.6 km/h
Speed and direction control Twin levers
Control adjustment 3 height, 11 positions
Travel speed
Frame Heavy-duty 2.5-in. x 2-in. (6-cm x 5-cm) front, and 1.5-in. x 2-in. (4-cm x 5-cm) side tubing
Primer/paint E-coat/powder
Front caster tires 11×6-5
Front caster bearings Sealed ball bearings
Drive tires 20×10-8
Hour meter Yes
Service interval decal Yes
Storage compartment Optional covered
Cup holder Yes
Maximum towing capacity 250 lb
113 kg
Chassis
Seat back height High back with optional armrests, 18 in.
46 cm
Fore-aft adjustment 2.9 in.
7 cm
Seat suspension Two springs
Seat
Type Foot lift
Mower cut height 1.25-4.5 in.
3-11 cm
Cut height increments 0.25 in.
0.64 cm
Preset cut height Yes
Lift system
Width of cut Accel Deep™ mower deck, 48 in.
122 cm
Accel Deep™ mower deck, 54 in.
137 cm
Type Side discharge
Mower deck material 10 gauge
0.135 in.
3.4 mm
Mower drive system V-belt
Mower deck
Type Electric, 105 lb-ft
142 Nm
Drive V-belt
PTO
Wheelbase 49.4 in.
1255 mm
Overall length 75.4 in.
1915 mm
Width without mower 43.3 in.
1100 mm
Width with mower 48A: 62.6 in.
1590 mm
54A: 68.5 in.
1740 mm
Width with mower (deflector raised for storage) 48A: 52.8 in.
1340 mm
54A: 57.1 in.
1450 mm
Height 42.5 in.
1080 mm
Weight 48A: 594 lb
270 kg
54A: 605 lb
275 kg
Dimensions
Rollover protective structure (ROPS) No
Slope operating limit 13 degrees; 10 degrees with Material Collection System
Operator presence system Yes
Park brake interlock Yes
Operator video Yes, online
Operation
Note 1 Durable Accel Deep Mower Decks are forged from 10-gauge steel with double captured mower wheels
Note 2 Easily change cut height from 1.25 to 4.5 in. (3 to 11 cm) using the foot lift and cutting height dial
Note 3 Integrated park brake is automatically applied when steering levers are stowed outward
Warranty 3 year or 200 hour bumper-to bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Buyer’s notes
Mulching system Optional MulchControl™ attachment
Rubber floor mat Optional
Sun shade Optional
Mounted sprayer Not available
Protective cover Optional
Light kit Optional

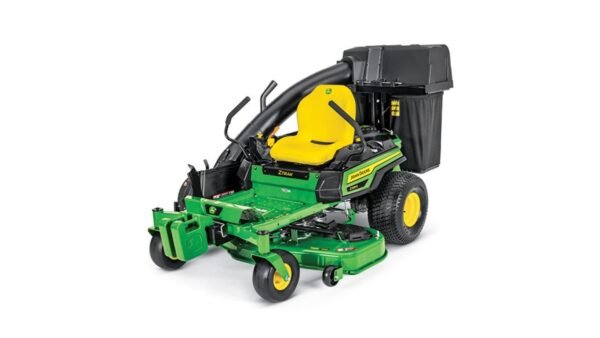

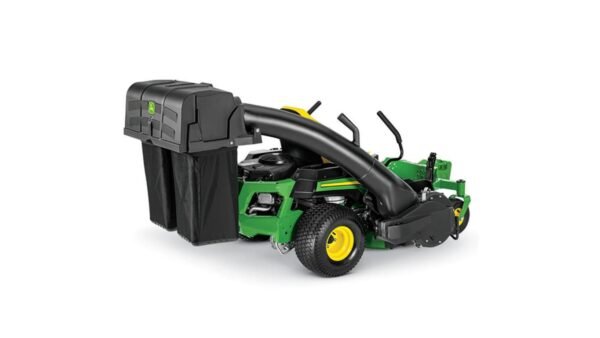

Material collection system Two-bag Power Flow MCS, 6.5 bu
229 L
Optional attachments
Manufacturing location Greeneville, Tennessee, USA
Date collected 3-Oct-22
